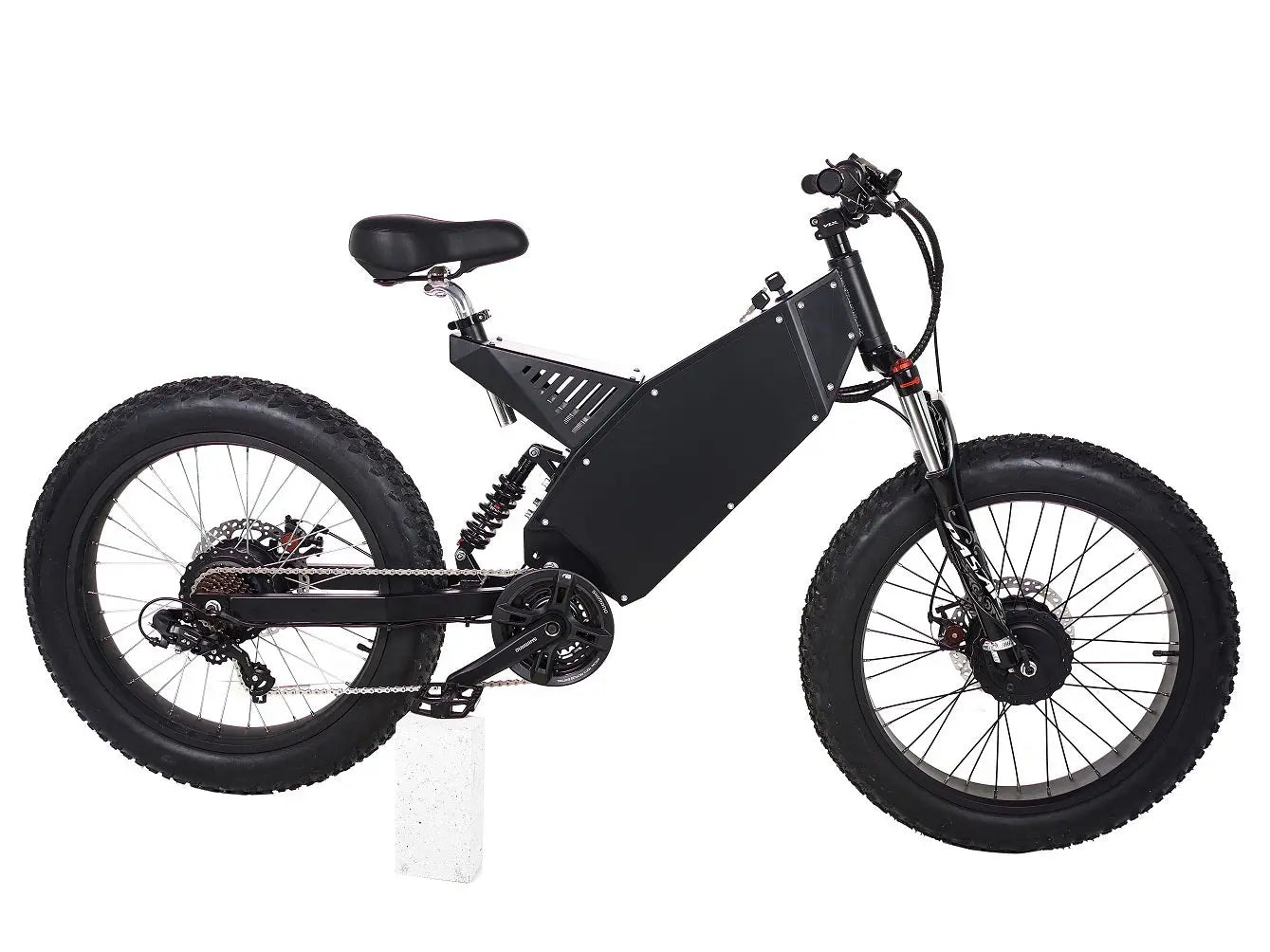

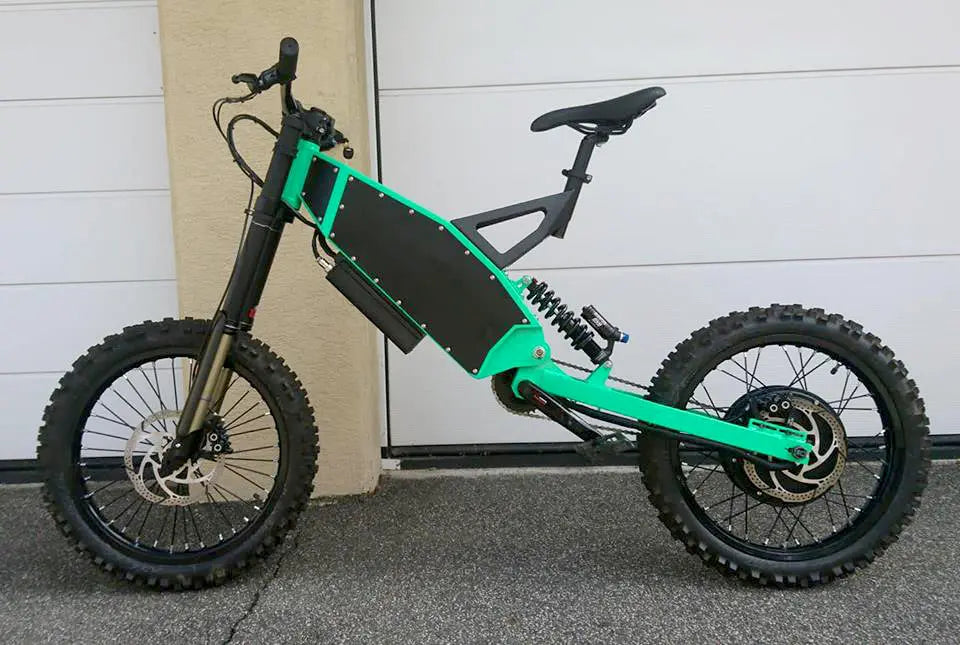

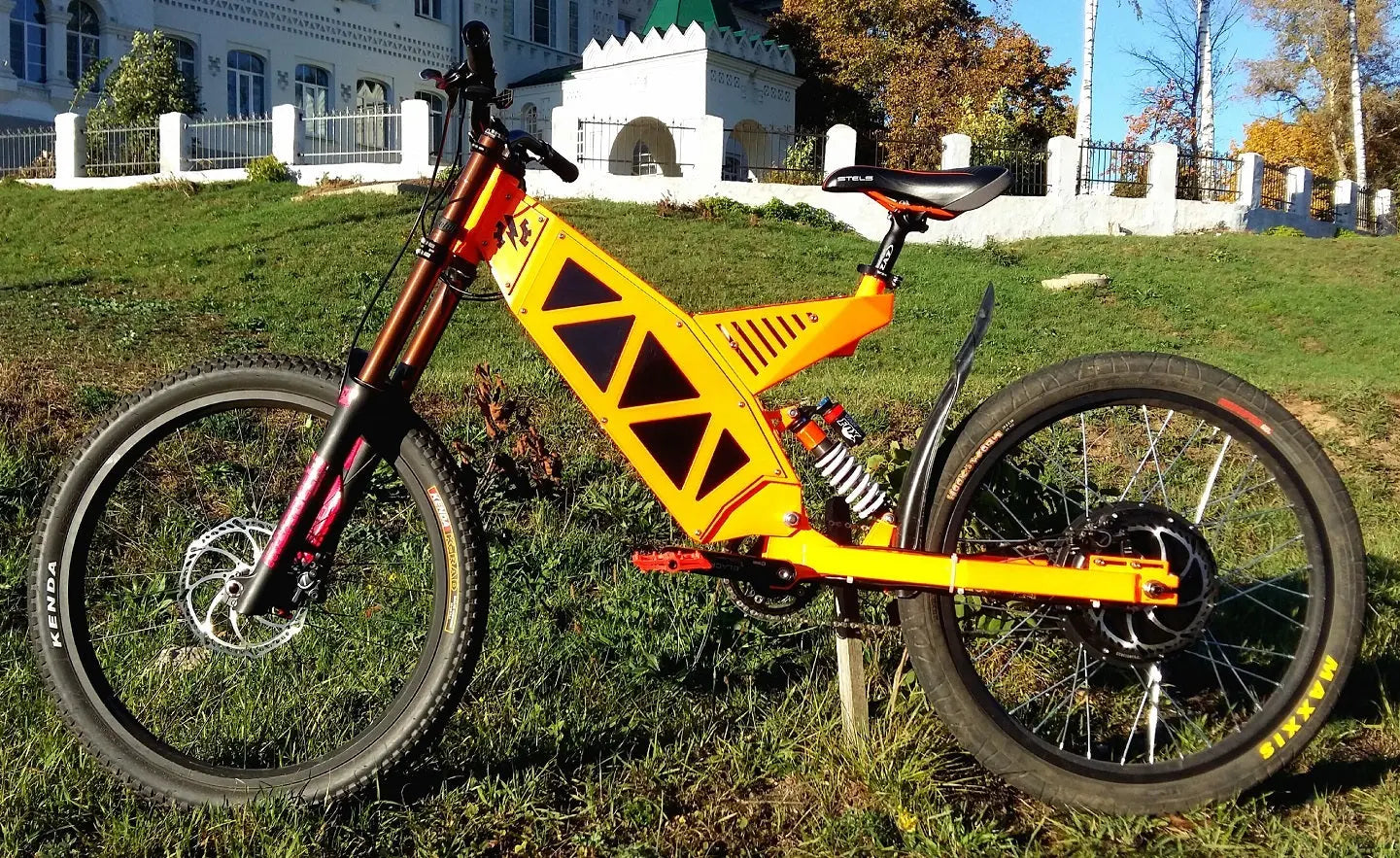

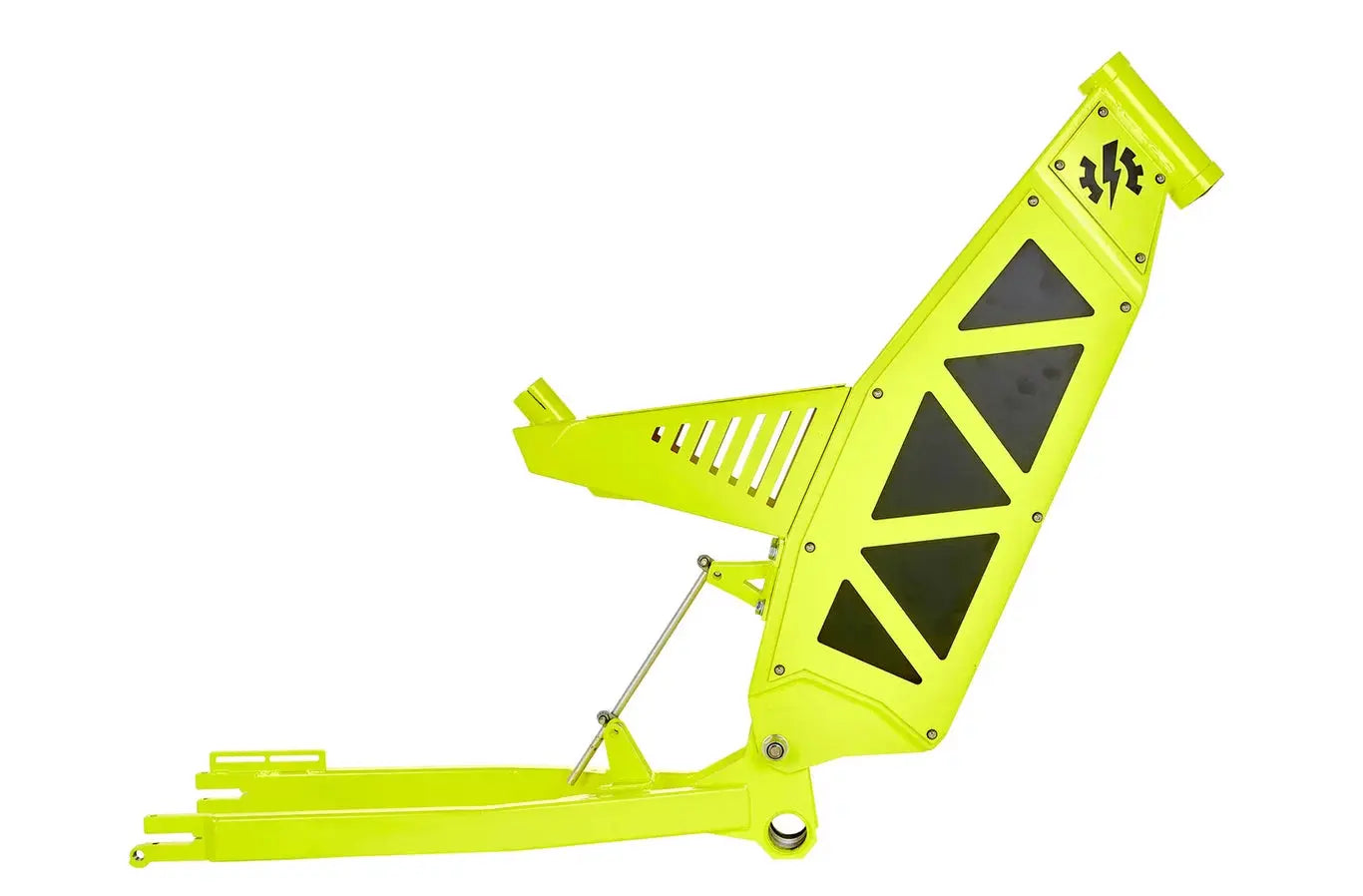

Teleport Prime Ebike Frame

$590.00 USD
Tax included Shipping calculated at checkout.

Description

Leading time before shipping: 3-5 weeks

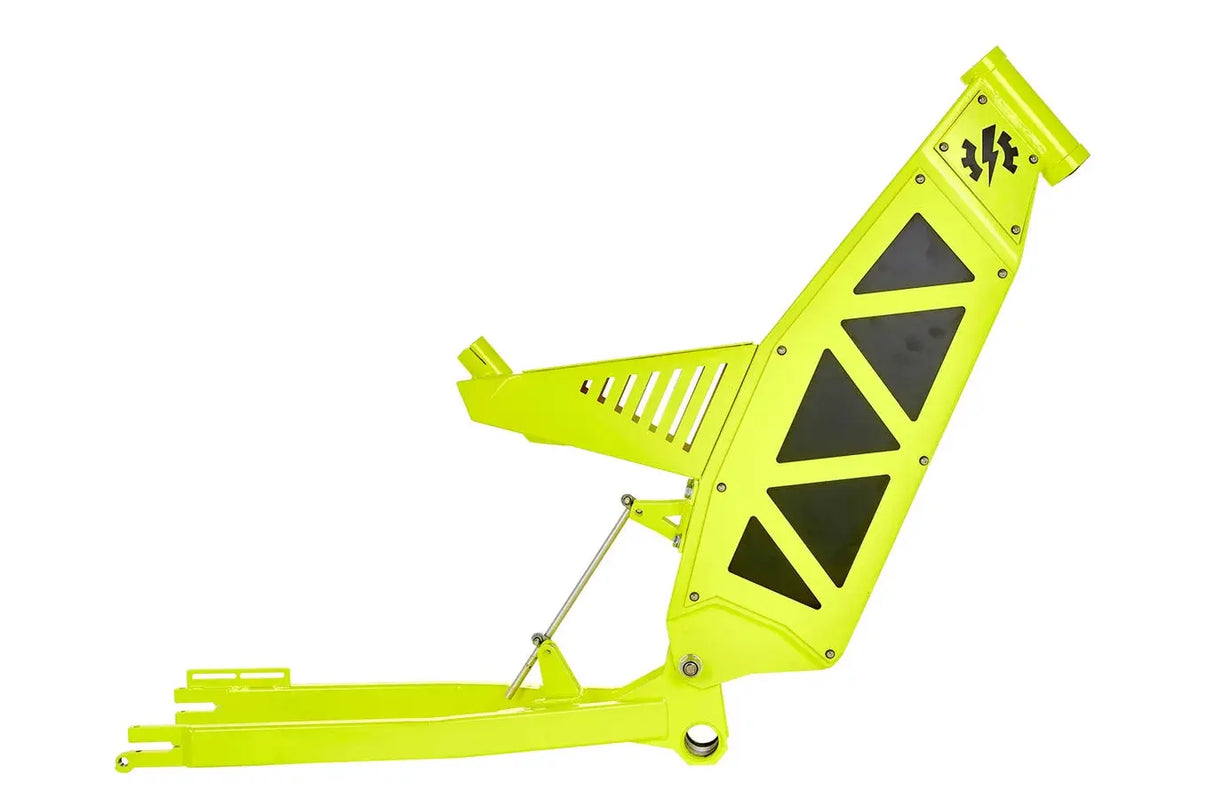

Teleport Prime frame is made for light and powerful configurations, with a large rear suspension travel

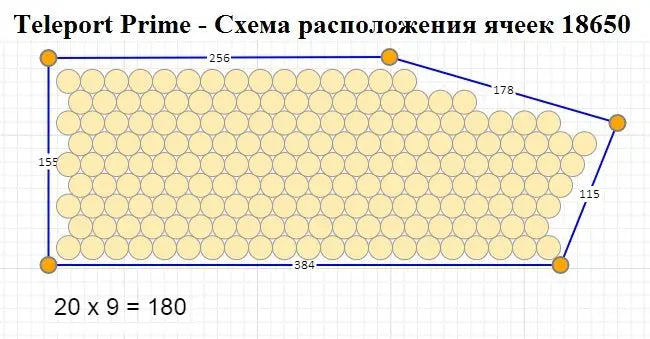

This frame is specifically designed based to satisfy the needs of users to move quickly and comfortably over rough terrain. The aim was to make it as lightweight as possible while still allowing for the installation of the most powerful motors. The strength is sufficient for riding on rough terrain as well as on highways. The battery compartment volume is enough to fit 180 18650 cells, providing over 2000W*h of energy with a frame width of 90mm. You can also fit 240 cells using a 120mm wide frame.

Package includes:

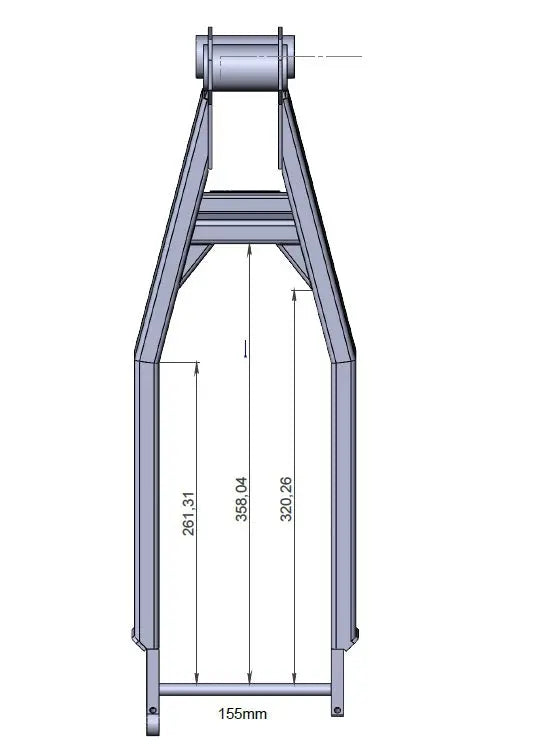

  • 24"/26" swingarm
  • Bicycle bracket (for the seat, with or without cutouts - optional)
  • Shock absorber bracket
  • Battery compartment and bicycle bracket covers
  • Additional side covers with cutouts
  • Swingarm bearings, swingarm axle spacer, shock absorber and swingarm axles, inter-block screws, washers, and nuts (all pre-installed on the frame)

Compatible bicycle parts:

  • Rear brake mount: IS 160-203mm rotors
  • Bottom bracket: 68/100 mm (for a 120mm frame), spindle length 122mm and longer
  • Headset: 140mm, semi-integrated, cups for 44mm
  • Seatpost: 30.6 - 30.8 mm
  • Suspension fork: travel 80-200mm
  • Rear shock: mounting width 24mm, axle 8mm. 160mm for a fork with 80-90mm travel, 180mm for a fork with 100-140mm travel, 190mm for a fork with 140-200mm travel, 200-241mm for a fork with 200mm travel
  • Wheels and tires (bicycle): 26" (optional) - 120mm rim, tire up to 4.5", 26" - 100mm rim, tire up to 4.5"
  • Wheels and tires (bicycle): 24" - 120mm rim, tire up to 4.5", 26" - 100mm rim, tire up to 4.5"
  • Wheels and tires (motorcycle): 21" rim with 2.5" tire, 19” rim with 2.7” tire, 18” rim with 3.6” tire, 17” rim with 4.2” tire

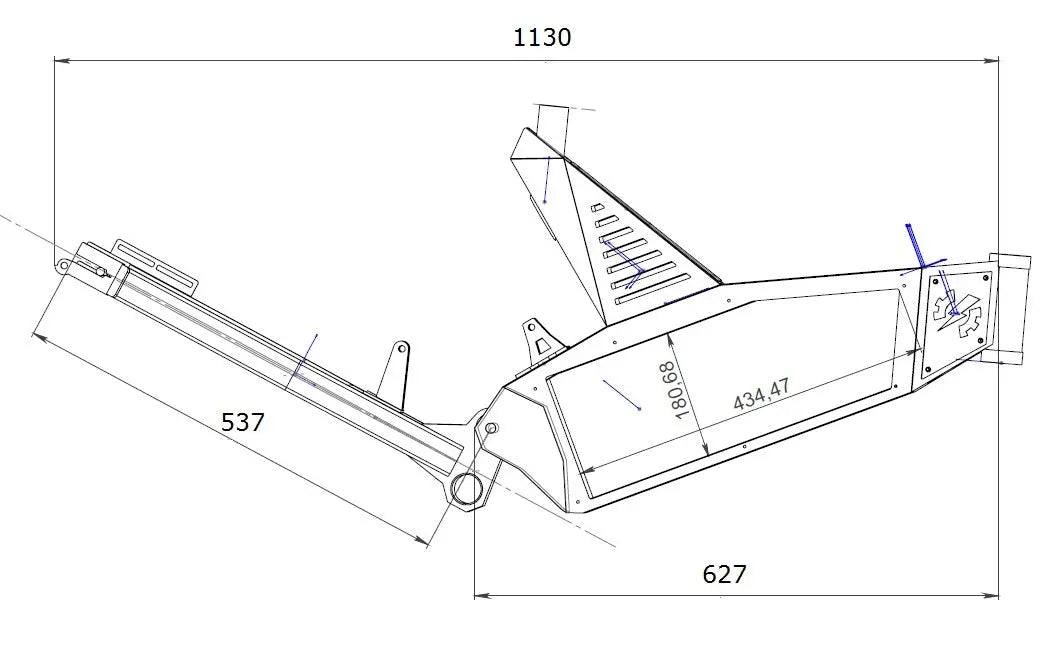

Technical specifications (90/120mm):

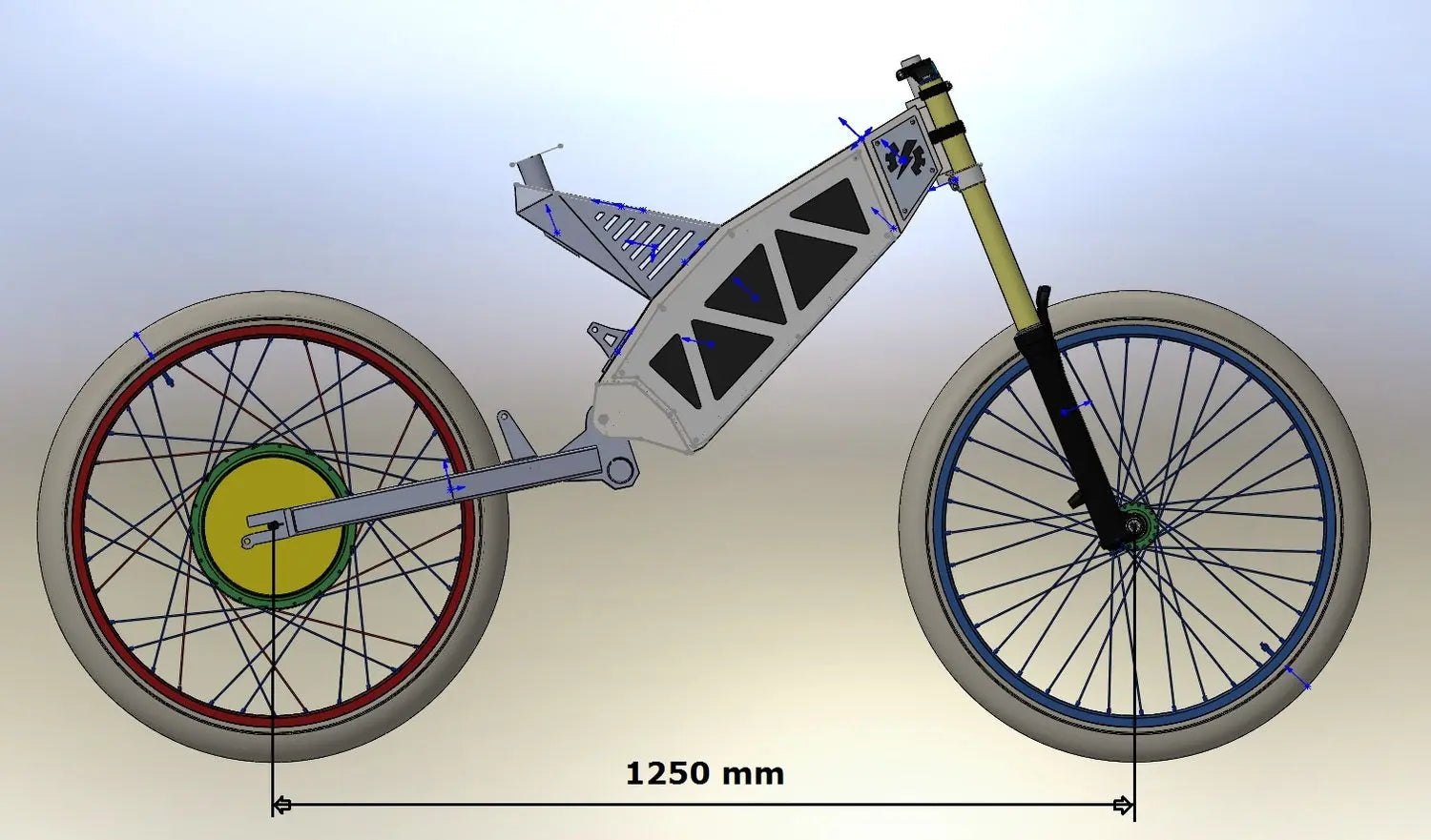

  • Wheelbase: 1250mm when using a fork with 200mm travel

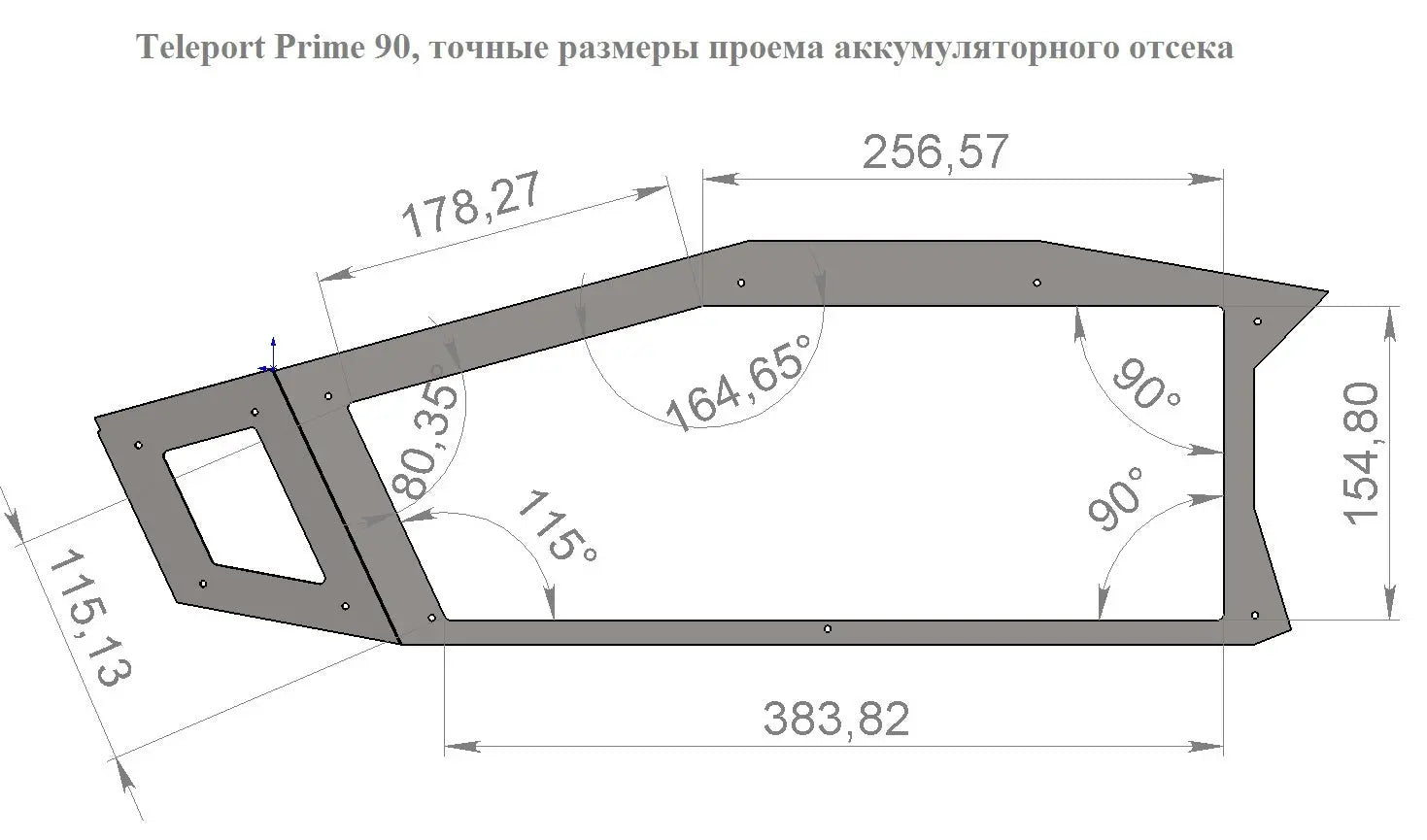

  • Battery compartment width: 90/120mm
  • Allowable number of 18650 cells: 180/240 pcs
  • Swingarm leverage ratio: 1/4.2
  • Width between dropouts: 145/155mm (optional)
  • Bottom bracket location: on the swingarm
  • Head tube: 140mm
  • Bottom bracket: 68/100mm
  • Seat options: bicycle
  • Maximum wheel diameter: 720mm (760mm optional)
  • Dropouts: horizontal with clamping mechanism
  • Chain tensioner hole: Yes
  • Rake (acceptable fork angle): 20-30 degrees
  • Battery loading: from the side
  • Rear shock: bicycle
  • Rear shock length: 160-242mm (4 bracket positions)
  • Maximum chainring teeth: 44
  • Weight: 8.7 kg
  • Load capacity: 120 kg
