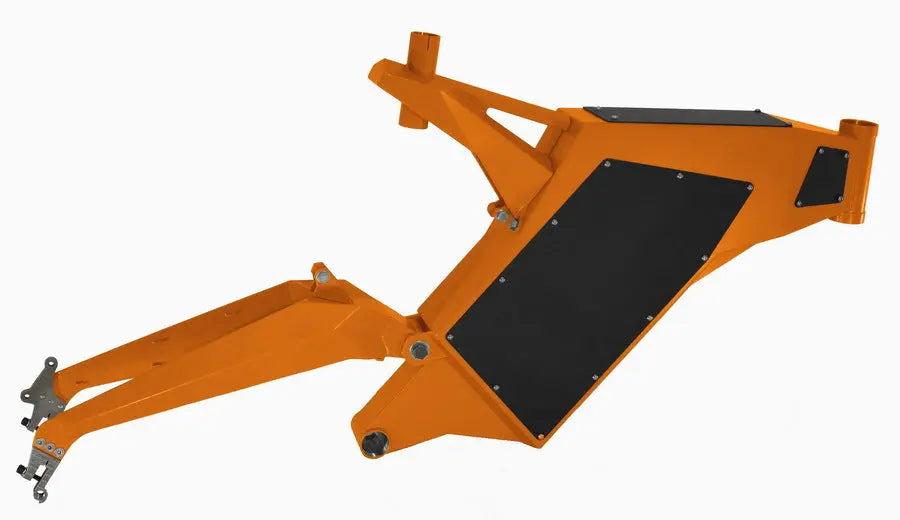

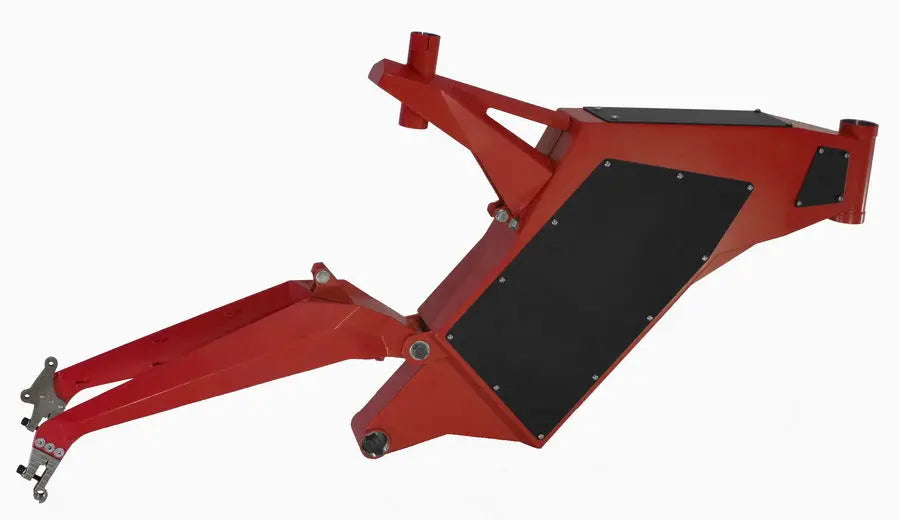

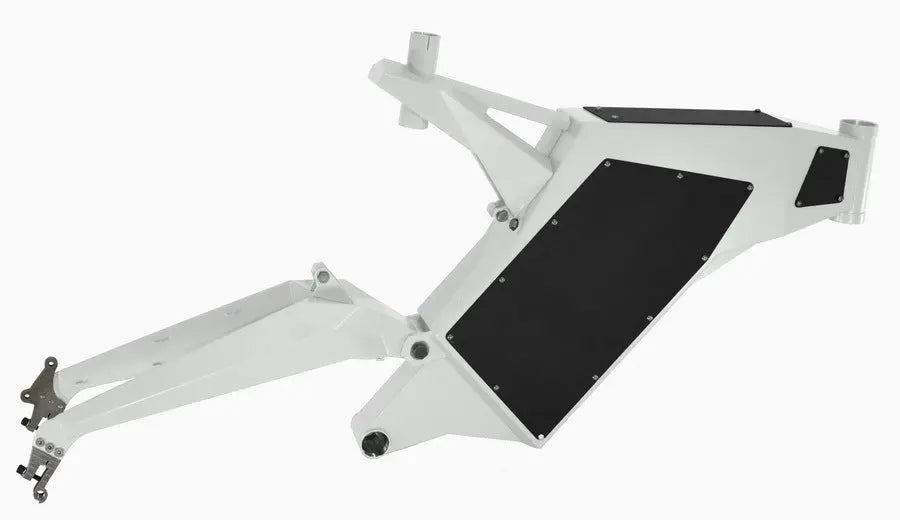

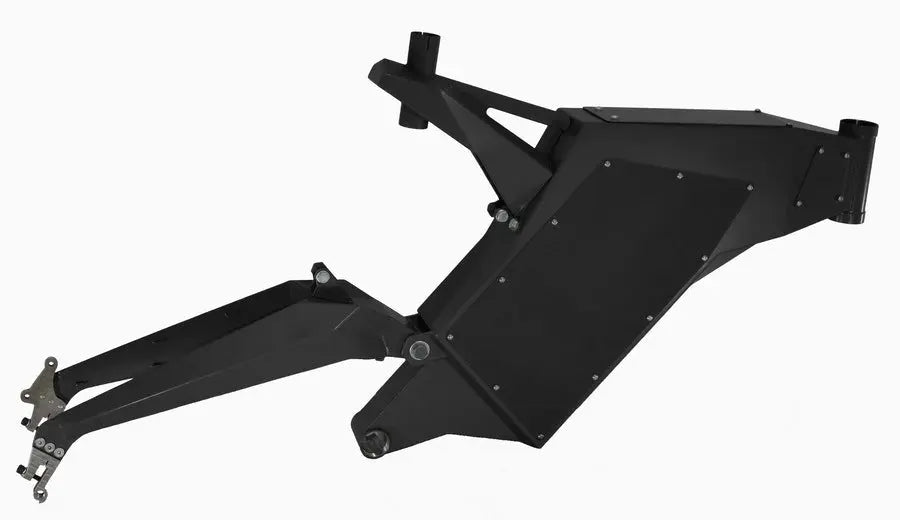

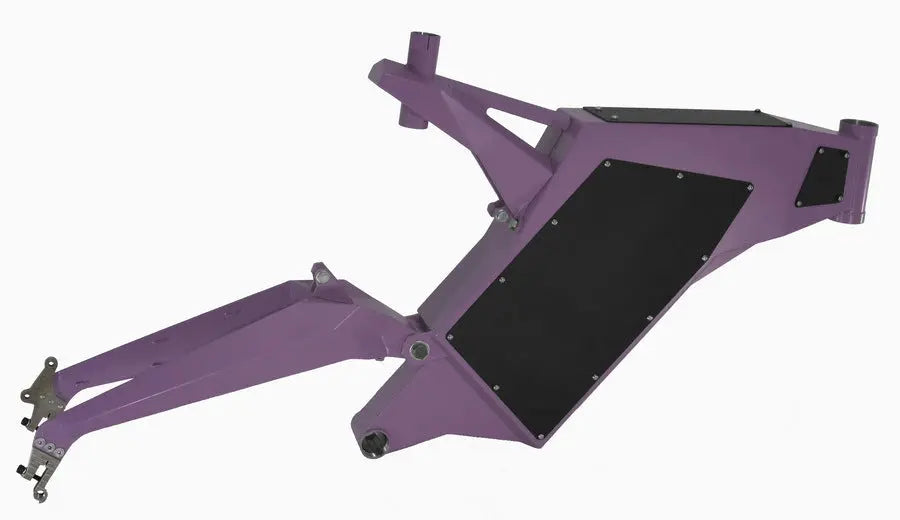

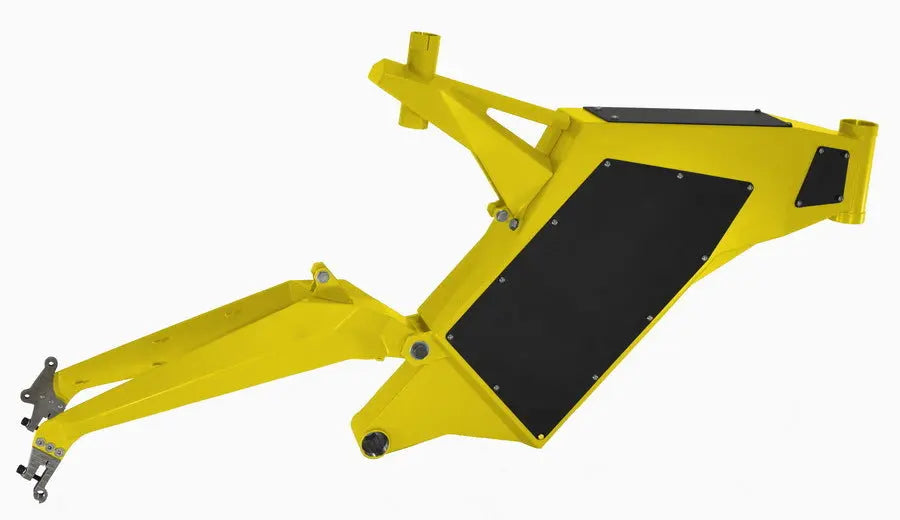

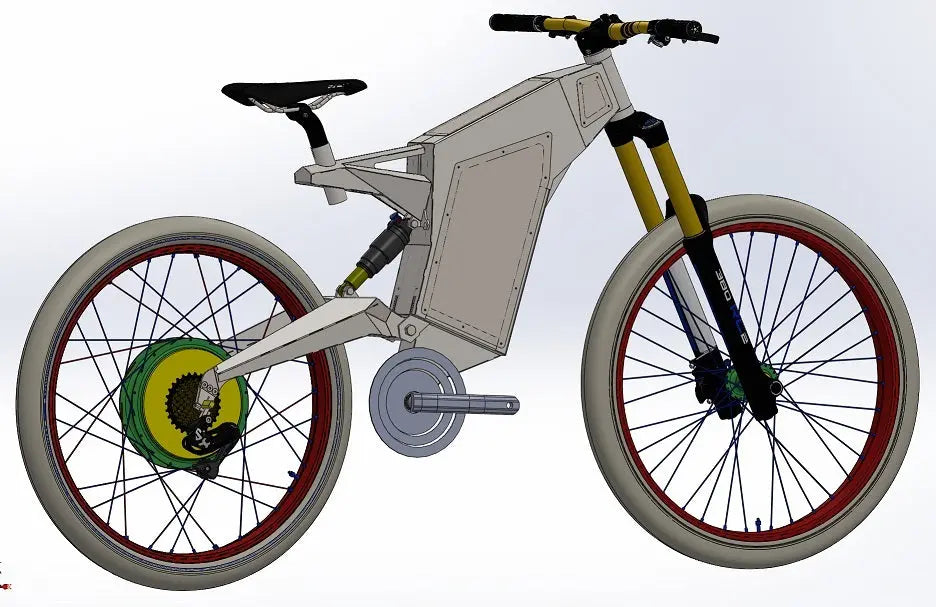

Teleport Light Ebike Frame

$790.00 USD
Tax included Shipping calculated at checkout.

Description

Leading time before shipping: 3-5 weeks

For creating lightweight configurations, short length, easy pedaling

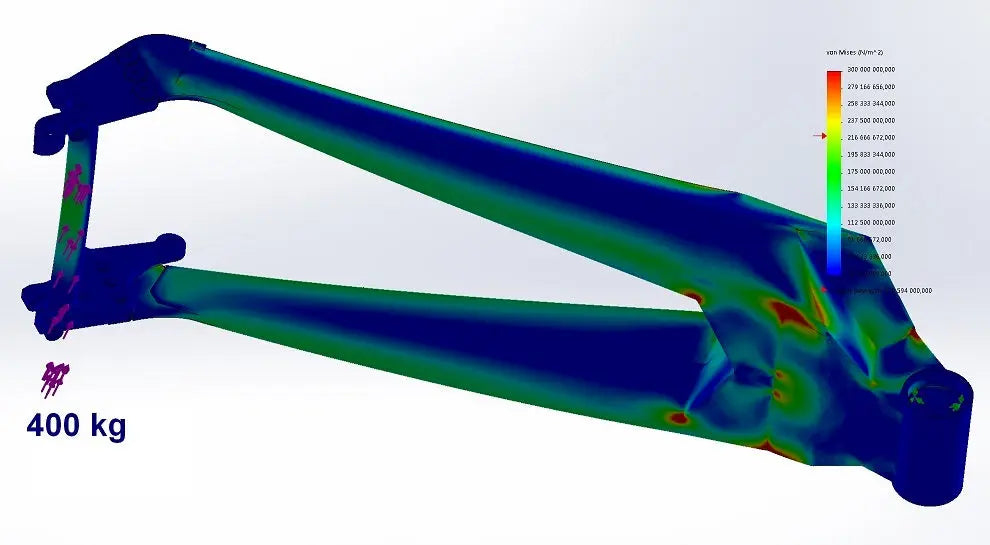

This frame design is based on users' needs to easily control the bicycle and pedal comfortably. Engineers made it as light as possible while taking into account potential overloads on the structure. The strength is sufficient for riding on rough terrain and even small jumps. The frame features a solution with removable dropouts, thickness 11mm. Material: Stainless steel ANSI 304 (American). Brake caliper standard: 160mm IS. Threaded hole for installing a gear shifter.

Package includes:

  • Battery compartment
  • Swingarm
  • Bike bracket
  • Shock absorber bracket
  • Battery compartment covers, 4 pcs
  • Swingarm bearings, swingarm axle spacer, shock absorber and swingarm axles, inter-block screws, washers, and nuts, stainless steel dropouts

Compatible bicycle parts:

  • Rear brake mount: IS 160-203mm rotors
  • Bottom bracket: 68mm, spindle length 122mm and longer
  • Headset: Semi-integrated, cups for 44mm
  • Seatpost: 30.6 - 30.8 mm
  • Suspension fork: travel 80-200mm
  • Rear shock: mounting width 24mm, axle 8mm. 160mm for fork travel of 80-90mm, 180mm for fork travel of 100-140mm, 190mm for fork travel of 140-160mm, 200mm for fork travel of 200mm
  • Wheels and tires (bicycle): 24" - 64mm rim, tire up to 2.5", 26" - 45mm rim, tire up to 2.5"
  • Wheels and tires (motorcycle): 19” rim with 2.7” tire, 18” rim with 3.6” tire, 17” rim with 4.2” tire

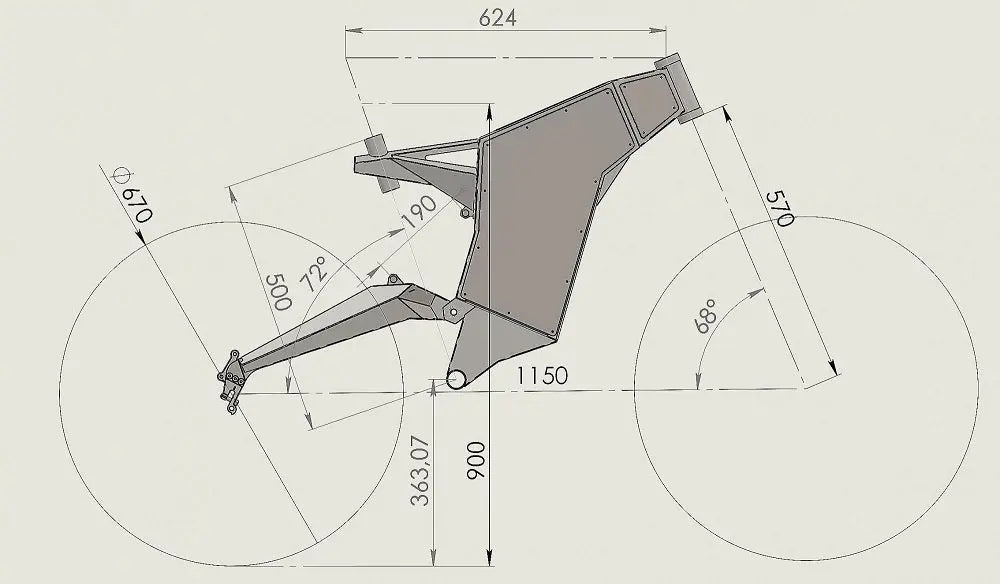

Technical specifications:

  • Wheelbase: 1150mm when using a fork with 200mm travel
  • Compartment width: 100mm

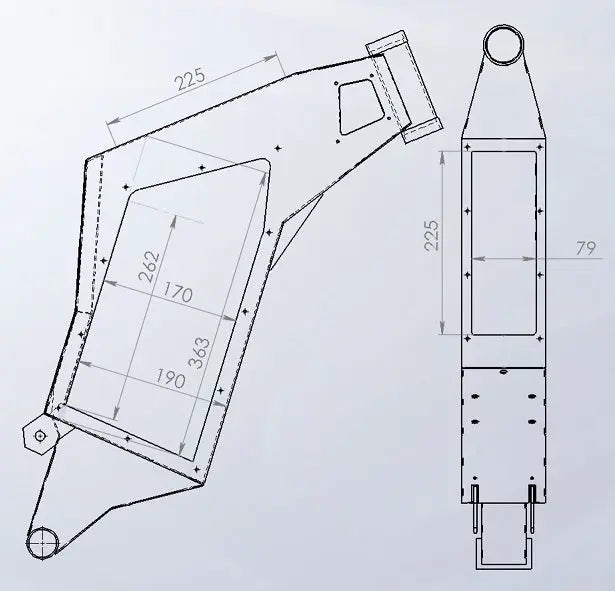

  • Maximum dimensions of removable battery: 310x160x80mm
  • Allowable number of 18650 cells for removable battery: 160+ pcs
  • Maximum dimensions of static battery: 350x180x95mm
  • Allowable number of 18650 cells for static battery: 220+ pcs
  • Swingarm leverage ratio: 1/3.7 or 1/4.5
  • Variable-width swingarm: yes
  • Reinforcements inside swingarm: yes
  • Width between dropouts: 145mm
  • Maximum wheel width: 64mm
  • Bottom bracket position: under the battery compartment
  • Head tube: 130mm
  • Bottom bracket: 68mm
  • Seat options: bicycle / motorcycle
  • Maximum wheel diameter: 700mm

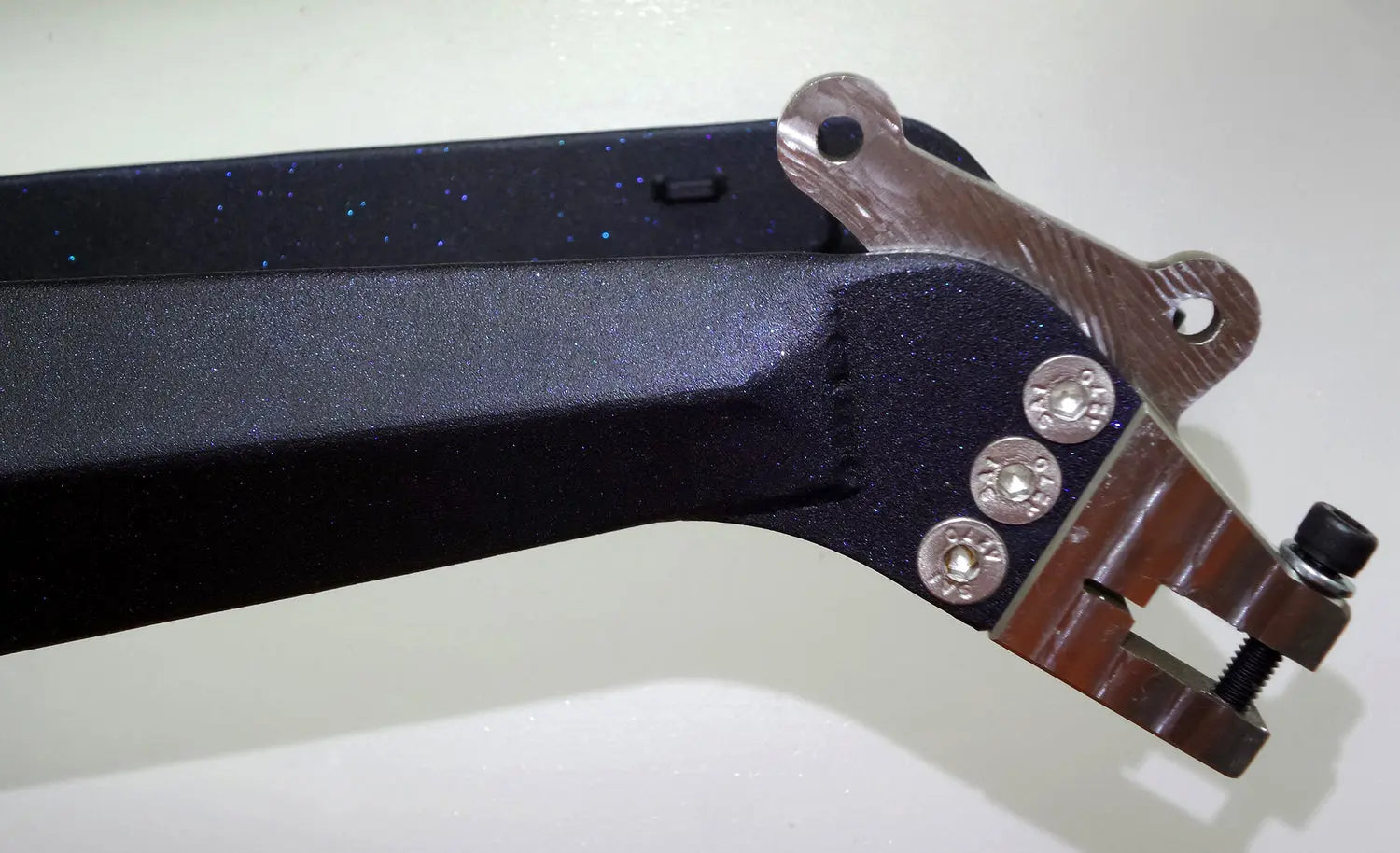

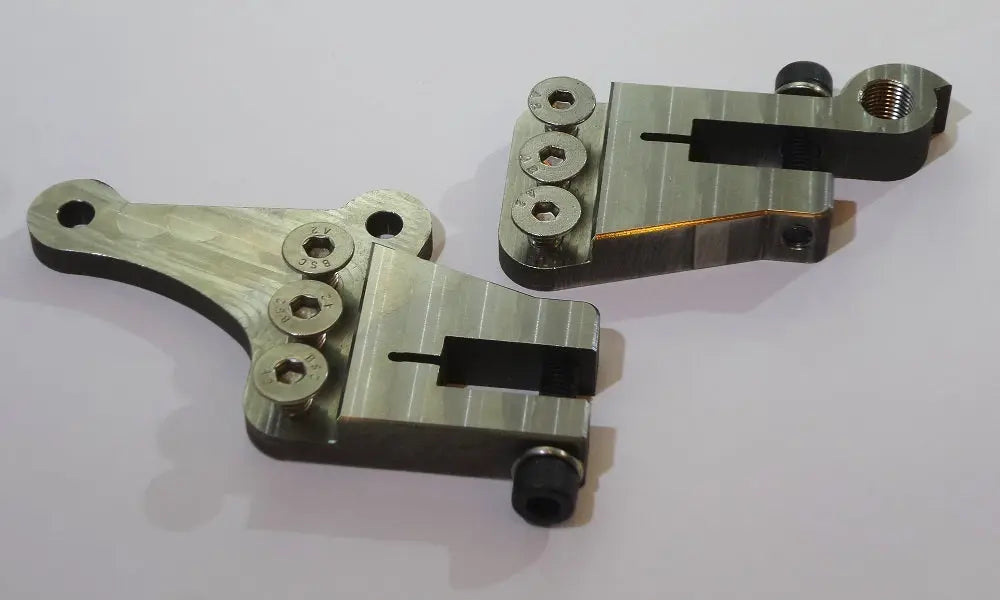

  • Dropouts: removable, vertical with a slight angle
  • Hole for chain tensioner: yes
  • Rake (fork angle): 20-30 degrees
  • Battery loading: from the side / top

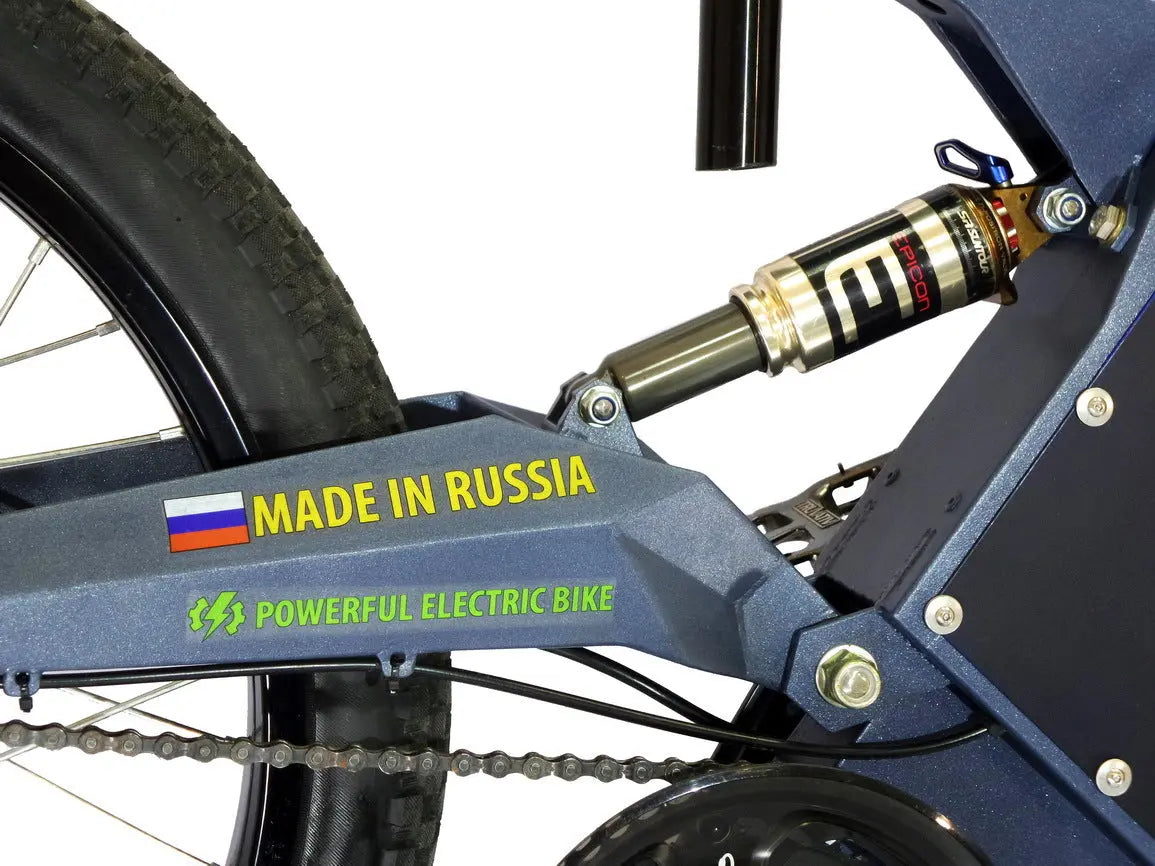

  • Rear shock: bicycle
  • Rear shock length: 190-220mm
  • Maximum chainring teeth: 52
  • Geometry: mountain bike
  • Weight: 8.5 kg
  • Load capacity: 120 kg
